Universal Rear Bumper

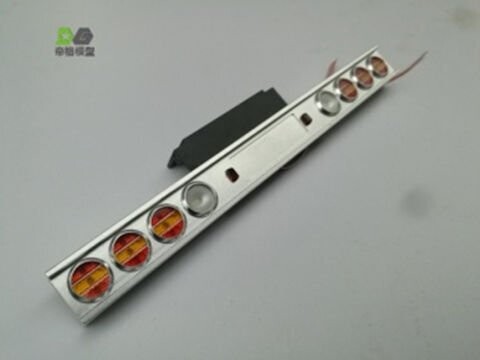

This is a CNC machined alloy bumper to fit any Tamiya truck.

This version has a number plate recess and lights for it, mounting is direct to the chassis rails via CNC machined and black anodized mount.

The bumper comes complete with burger style lights and pcb's.

Lights comprise combined side/brake/fog x 3 plus 2x reversing lights and highlight lamps.

An optional rubber mudflap is available for Scania, Mercedes, MAN and king of the road.

The light cell is approximately 182 wide and approximately 12 deep and 18 high

Wiring:
DEPENDING ON YOUR SUPPLY YOU WILL NEED TO ADD APPROPRITE RESISTORS (none needed for mfu).
The two red and blacks from the visible pcbs need resistors in the circuit.
The other leds are powered through pairs of red/black OR red/white wires you can check which is which by using a battery and appropriate resistor. There is a 100 ohm resistor on the boards.
