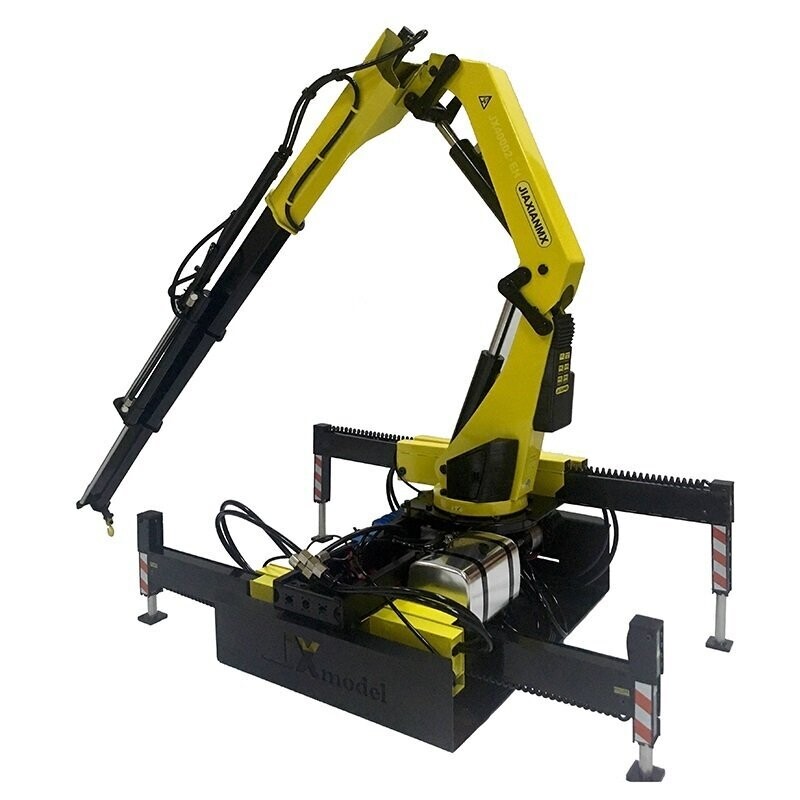

JX Models 1/14 Truck Mounted Crane
JX Models 3 extension 1/14 Truck Mounted Crane
Product Description
-1/14 Remote Control Heavy-Duty Truck Crane Model,Suitable1/14
-The Main Frame 1 Set, 5 Main Frame Cylinders Support
- 4 Support Telescopic Feet, 4Telescopic Leg Oil Cylinder
- 4Support, 4 Support Leg Motor Retarding Devices 2A Remote Electrical Tilt;
-4 One-Way Reversing Valves 4A9 Grams of Steering Gear
-1 Turntable and Turntable Motor Distribution and Adjustment
-1 Large Flow and Large Pressure Oil Pump
-The Oil Tank82x52x52
-Beam 1Set, Boom Batter Board 2 Pieces, (Used to Copy the Required Hole Position of the Product)
-1 Product Instruction.
Lifting Power:
Hydraulic (Test Lifting3KG, Reason Section 3 The Extension Length of the Telescopic Arm Is Different at different lengths when used) It Is Recommended Not to Lift Heavy Objects as this s a Model. It Can Be Used to Lift Simulated Heavy Objects if you like.
-4 Telescopic Leg Power: Hydraulic
-5 Vertical Support Leg Power:N20Motor Retarding Device plus Leading Screw
Product Specifications
-Product Size:170(L)X200(W)X200(H)mm(The Reserved Space for Installation Is Not Less170mm)
-Product Full Expansion Size: Third Telescopic Arm Length650mm;
-The Second Arm Height350mm;
-Lifting Height834mm (given as a Guidline)
-Rotation Angle(Left/Right) 360Degree, Recommended to Be Less360The Degree
-Product Weight:5.5KG
-Power Supply:2S-3SLithium Battery (Recommended3S)
-Minimum 12 channel Remote Control Required by the Product
Hydraulic Oil: New 46#Hydraulic Oil
